What is audio clipping?

The short answer

Every digital signal has a hard limit, a loudest value it is allowed to reach. That ceiling is called 0 dBFS, short for zero decibels relative to full scale, and it is the largest value the system can store for a single measurement of the sound. Clipping is simply what happens when the audio tries to go louder than that.

When a peak in your audio would be louder than 0 dBFS, the system cannot store the real value, so it does the only thing it can: it writes down the biggest number it has and holds there until the signal drops back under the limit. The naturally rounded top of the wave gets sliced off flat, as if it were pressed against a ceiling. That squared-off shape is clipping, and it is where the ugly, buzzy sound comes from.

Why a clipped signal distorts

A real sound wave is smooth. It rises and falls in gentle curves, and your ears expect those curves. Clipping replaces the rounded peaks with straight, flat lines that meet the rest of the wave at sharp corners. Those sudden corners are not part of the original sound at all: they are brand new, harsh, high-pitched tones the clipping invented, and that added fuzz is the distortion you hear.

The further past the ceiling the signal tries to go, the more of each peak gets flattened, and the harsher it sounds. A tiny overshoot may barely be audible, while a signal pushed far too hot turns into a wall of crackle and grit. And because the part of the wave above the ceiling is thrown away rather than quietly turned down, clipping is destructive: once a peak has been squared off in a recording, the real shape is gone and no volume knob can bring it back.

What actually causes it

Clipping is almost always one thing wearing different hats: too much gain, the amount a stage boosts the signal, somewhere in the chain. Sound usually passes through several stages between the source and your ears, and any one of them can be turned up past the point where the signal fits. The usual culprit is the very first stage, the input or mic gain, set too high, but a loud effect, an aggressive boost, or a hot master level can all do it too.

• Digital clipping. The kind this page is mostly about. When a signal crosses 0 dBFS inside your computer or interface, the peaks are chopped off dead flat, and the result is the harsh, brittle distortion most people mean by clipping.
• Analog clipping. When a physical circuit like a mic preamp is overdriven, it rounds the peaks off more gently. In small doses this can sound warm, which is why guitar amps use it on purpose, but taken too far it distorts just like the digital kind.

Because gain stacks up as it moves through the chain, the fix is rarely to turn down whatever is loudest at the end. It is to find the earliest stage that is too hot and lower that, so nothing downstream is ever handed a signal it cannot fit. That practice of setting each stage sensibly is called gain staging.

How to stop clipping

The whole game is to keep your loudest peaks a safe distance below the ceiling. That safety margin has a name: headroom, the empty space between your peaks and 0 dBFS. If your loudest moments land around six to twelve decibels below the ceiling, an unexpected loud word or note has somewhere to go instead of slamming into it. Aiming for the absolute top of the scale leaves no room for the peaks you did not plan for.

• Turn the right thing down. Watch your meters, find the earliest stage that runs hot, and lower that one first. Chasing the problem at the end of the chain just moves it around.
• Leave headroom on purpose. Set your levels so normal material peaks well under 0 dBFS. You lose nothing by being a few decibels quieter, and you gain a buffer against surprises.

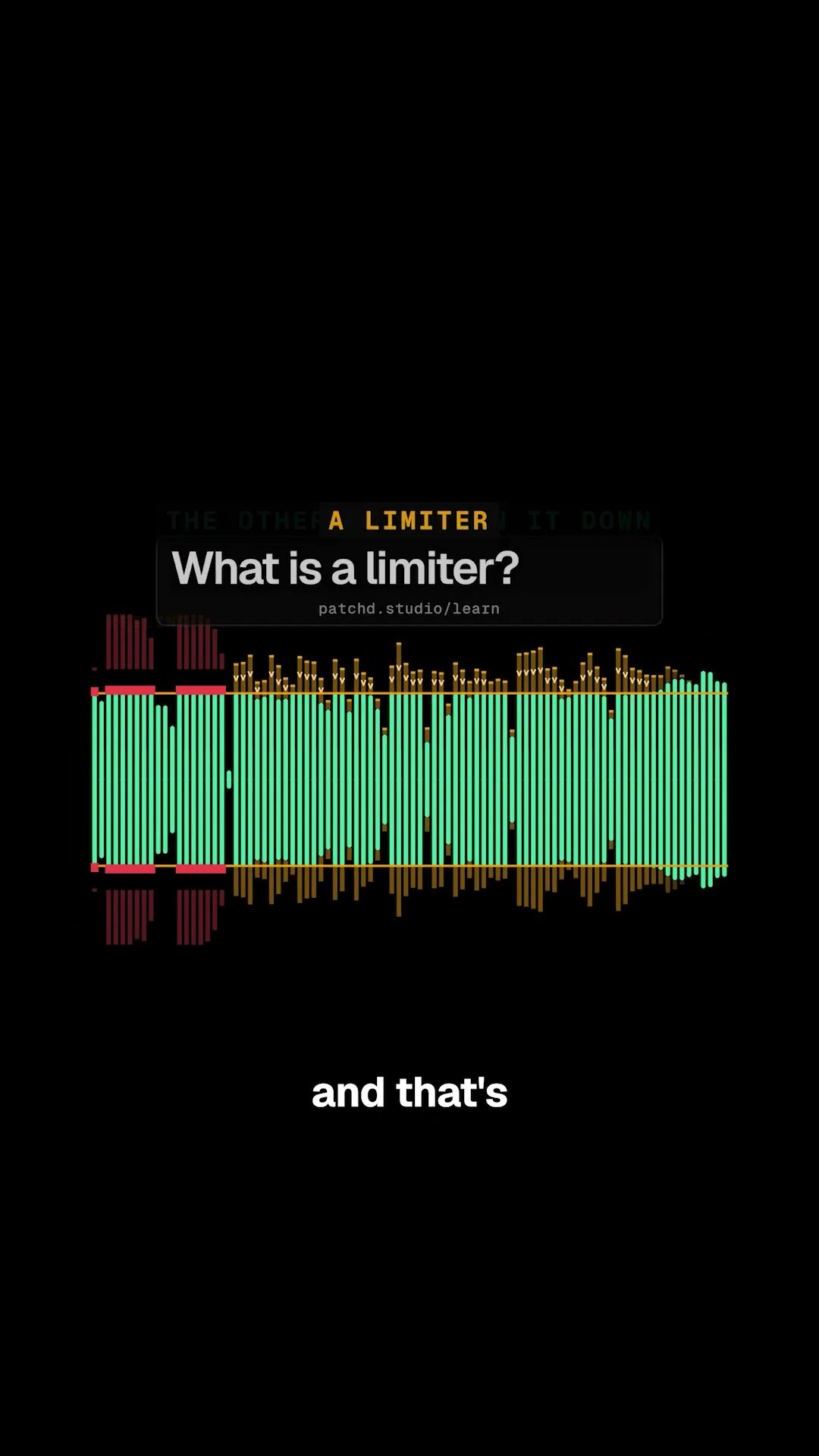

• Add a limiter as a safety net. A limiter is a tool that catches peaks and gently holds them just under the ceiling, so a stray spike is smoothly contained instead of clipped.

If the sound is already breaking up and you want a step-by-step fix rather than the theory, see mic peaking or distorting, which walks through turning the right gain down in the right order.

Clipping in patchd

In patchd, a Windows virtual audio mixer, every channel has a meter, and clipping is exactly what those meters warn you about. As a signal climbs toward 0 dBFS the meter runs up into its top zone, and that is your cue to back the level off and leave headroom before the peaks square off. Keeping an eye on the meters is the simplest habit for catching a hot channel before it distorts.

For peaks that are hard to ride by hand, you can drop a limiter node onto the channel. It sits in the channel's effects chain and catches spikes before they reach the ceiling, so a sudden loud moment is held safely under 0 dBFS instead of clipped. The engine is real time and runs over ASIO and WASAPI Exclusive, the low-overhead Windows audio paths, so that safety net adds only a few milliseconds of engine-internal delay at a small buffer while your audio stays clean.

The takeaway

Clipping is what happens when a signal is louder than its ceiling of 0 dBFS, so the peaks get written flat and those squared-off edges turn into harsh distortion. It is caused by too much gain somewhere in the chain, and it is destructive, so the answer is to prevent it rather than repair it. Keep the earliest stage from running hot, leave a few decibels of headroom below the ceiling, and let a limiter catch whatever you miss.

patchd is pre-launch, with per-channel meters and a full effects rack, including a limiter, on every channel. If you want a Windows mixer that makes it easy to keep your levels clean and your peaks under the ceiling, join the waitlist and get notified when it ships. The paid Studio tier is $39.99 per year, and the real-time engine is identical on both tiers.
