What is gain staging?

The short answer

Every bit of audio travels through a chain of stages. It comes in from a microphone or an app, it gets processed by any effects along the way, and it goes out to your ears or your listeners. At each of those stages the signal has a level: how strong it is at that exact point. Gain staging is simply the habit of setting those levels so the signal is always strong enough to hear clearly, but never so strong that it distorts.

The goal is a signal that stays in a healthy band the whole way through, with a little room to spare at the top. Get the level right at the very first stage and every stage after it inherits a clean, well-behaved signal. Get it wrong at the start and the problem follows the audio all the way down the chain, where it is far harder to fix.

Gain versus volume

Gain and volume feel like the same knob, because both of them seem to just make things louder. They are not the same thing, and the difference is the whole point of gain staging. Gain is the level of the signal going into a stage, how hard you are driving it. It lives at the input end, close to the source. Volume is how loud the result is when it comes out the other end, on its way to your ears or your audience.

Here is why the distinction matters. When you turn the output volume up, you amplify whatever you fed in, faithfully and without judgement. If the signal arriving at the input was weak and buried in hiss, a louder volume gives you louder hiss. If it was already distorted, a louder volume gives you louder distortion. Fixing the sound almost always means adjusting the gain early, near the source, not reaching for the volume at the very end. Volume changes how loud you hear it. Gain changes what the rest of the chain has to work with.

Why headroom is the whole game

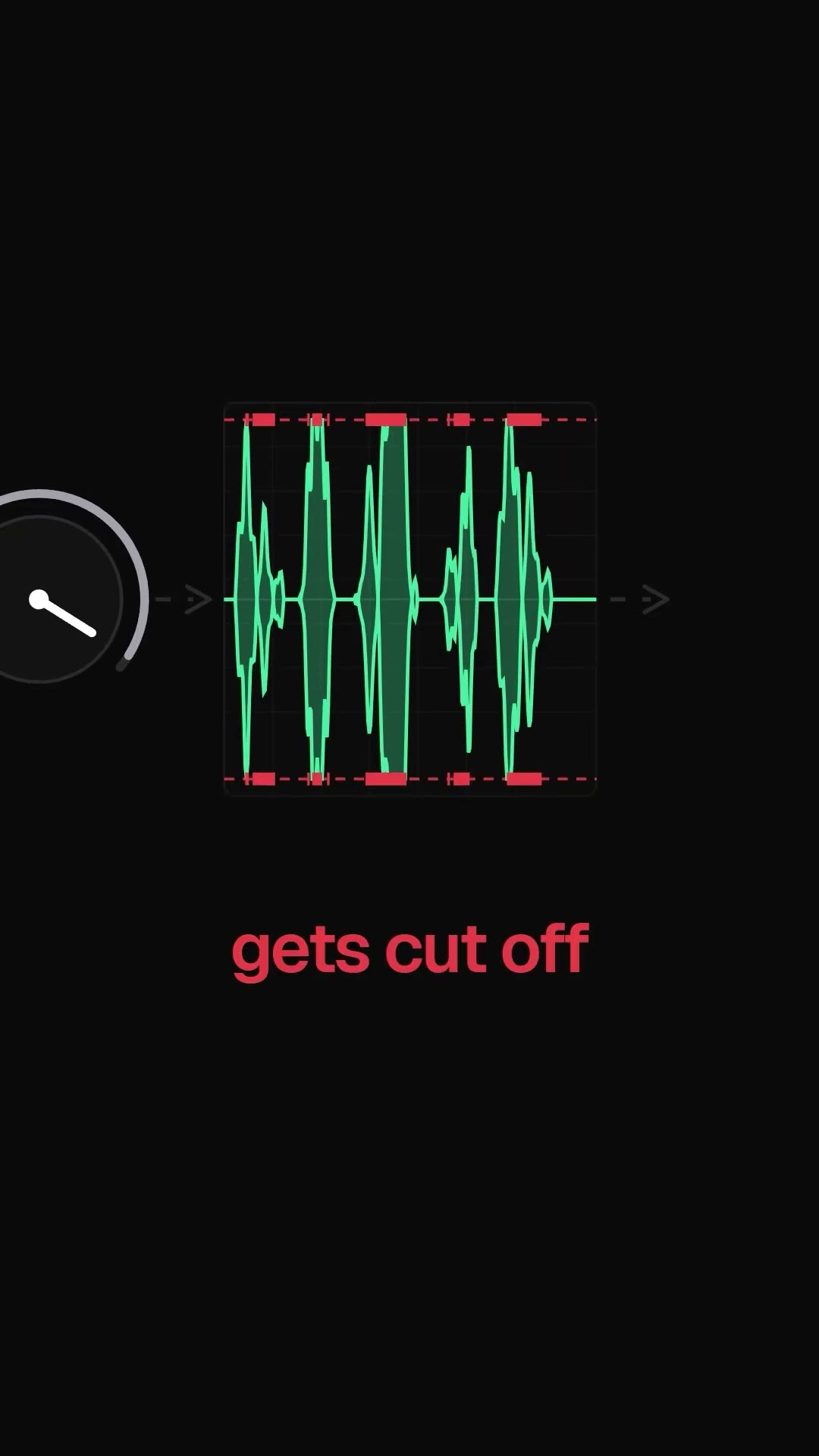

Digital audio has a hard ceiling. That ceiling is written as 0 dBFS, and it is the loudest level the system can represent at all. Push a signal past it and the tops of the waveform get chopped off flat, because there is simply no number left to describe them. That chopping is clipping, and it sounds like harsh crackle or a broken, fuzzy edge on the sound. To understand the scale those numbers sit on, see what is a decibel.

Headroom is the gap you deliberately leave between your loudest peak and that ceiling. A healthy target is to let your peaks land somewhere around -12 to -6 dBFS, which keeps the signal comfortably loud while leaving several decibels of room at the top for a sudden laugh, a loud word, or a boost from an effect later on. Headroom is insurance: it is the margin that stops a normal moment from tipping into clipping.

The reason to protect headroom early is brutal and simple: once a signal clips, it is damaged for good. Nothing downstream can rebuild the peaks that were flattened. If the input clips, every effect after it is now processing broken audio, and the output is broken too. Stage the level healthy at the start and keep some headroom at every step, and the chain stays clean from end to end.

How to set a healthy level

Good gain staging works from the front of the chain backward, one stage at a time. The order matters more than any single number.

• Start at the source. Set the gain on your microphone preamp or interface first, watching the input meter, until your normal speaking peaks sit in the healthy band with headroom above them. This is the single most important level in the whole chain.
• Keep it sane through effects. Some effects change the level as a side effect. A compressor with makeup gain or an EQ that boosts a band can push you back up toward the ceiling, so glance at the meter after the processing, not just before it.
• Leave the output for last. Once the signal is clean and well staged, the final volume is just a comfort setting. It should never be the tool you reach for to rescue a level, only to trim the finished, healthy result.

In practice, two problems cover most cases. If the sound is too quiet, the fix is to raise the gain early rather than the volume late, covered in why is my mic so quiet. If it is peaking or distorting, the fix is to turn down the first thing that is too hot, not the output at the end, covered in why is my mic peaking or distorting.

Gain staging in patchd

In patchd, a Windows virtual audio mixer, every channel has its own fader and its own live meter, so the level at that point in the chain is always something you can see rather than guess at. Good gain staging here means getting a healthy input level with headroom before the signal reaches the effects rack, so the DSP effects behave the way they are meant to and nothing clips on the way out to your buses.

That order is the point. A noise gate, an EQ, and a compressor all assume they are being fed a sensibly staged signal; hand them a clipped one and they can only polish the damage. By keeping the meter in the green with room to spare at the input, you give the whole rack, and the outputs that other apps pick up as a microphone, a clean signal to start from.

The takeaway

Gain staging is keeping your audio at a healthy level, with a little headroom, at every stage from input to output. Gain sets what the chain has to work with; volume only sets how loud you hear the result, so a weak or clipped signal is fixed at the input, never rescued at the output. Leave headroom below the 0 dBFS ceiling, stage the level right at the source, and the whole chain stays clean because clipping is the one mistake you cannot take back later.
